Plastics (Tooling / Injection / Colour Coating) |
|
|
 |
|
|
|
|
|
Plastics Tool Fabrication / Plastics Injection |
|
|
|
Parts Engineering |
 |
 |
|
Custom Tooling |
|
Decoration |
|
Colour Spray |
|
Silkscreen Printing |
|
Pad Printing |
|
Plastics injection |
|
|
|
Market Segments |
|
MP3, Mobile Phone, GPS |
|
Digital Photo Frame, Medication Parts etc. |
 |
|
|
|
Materials |
|
Acrylic, ABS, PC+ABS, PMMA, PP, |
|
PP+60%GF, POM, PA, TPU etc. |
|
|
|
|
|
|
Molding and Plastic Division |
|
|
|
Full Loyal Offers |
 |
 |
|
Mould Design |
|
Mould Fabrication |
|
Plastic Injection |
|
Plastic Color Decoration |
|
Silkscreen and Pad Printing |
|
Product Casing Assembly |
|
|
|
|
|
|
Molding and Plastic Division |
|
|
|
Service |
|
Starting from mould design to plastic injection |
|
|
|
Facilities |
|
Class 10 thousand CLEAN ROOM with 2XROBOTIC Arms for plastic spraying including rubber paint spraying and UV paint spraying. |
|
|
|
Production |
|
Advanced machineries and technology plus our fully utilized 24-hours production lines |
|
|
|
Market |
|
Producing product that matches with Market Needs and changes |
|
|
|
|
|

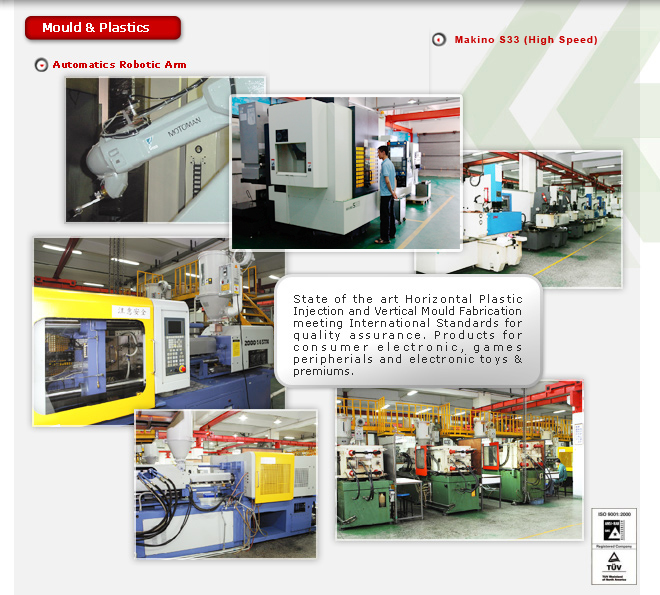

Molding and Injection Facilities |
|
|
 |
|
|

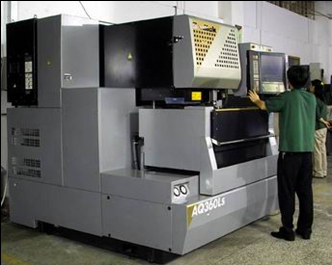

Wire Cut Machine |
|
 |
 |
|

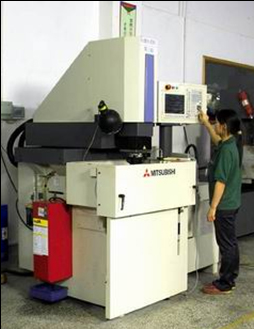

EDM |

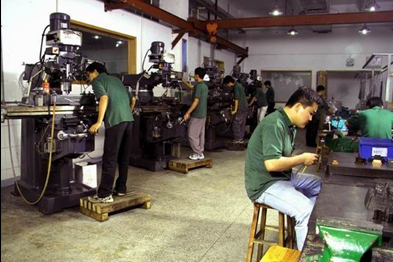

Milling Machine |
|
|
|
|
|
|
Molding and Injection Facilities |
|
|
|
|
 |
 |
|
|

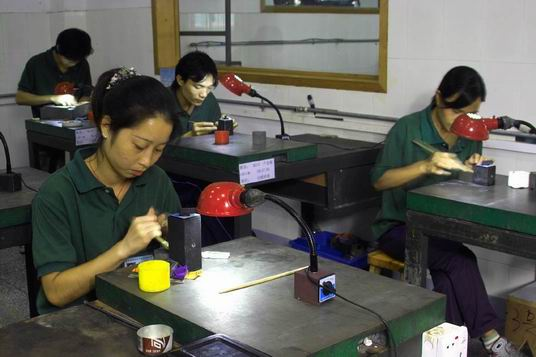

Mold Polishing |

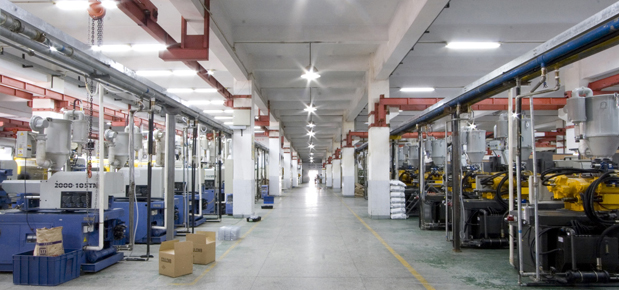

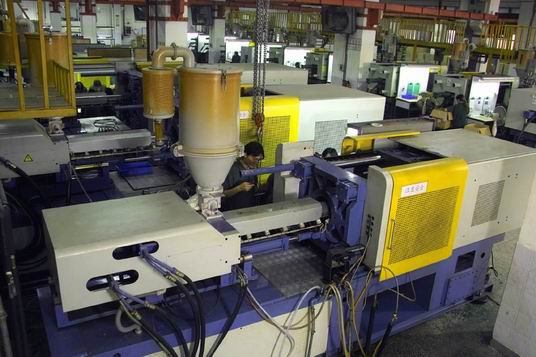

Plastic Injection |
|
|
|
|
|
|
Painting and Silkscreen Facilities |
|
|
 |
 |
|

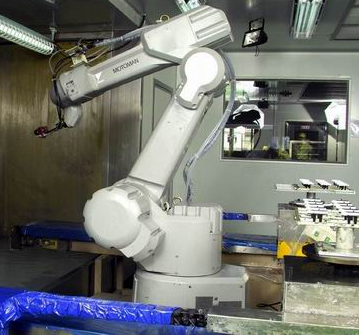

Robotic Arm |

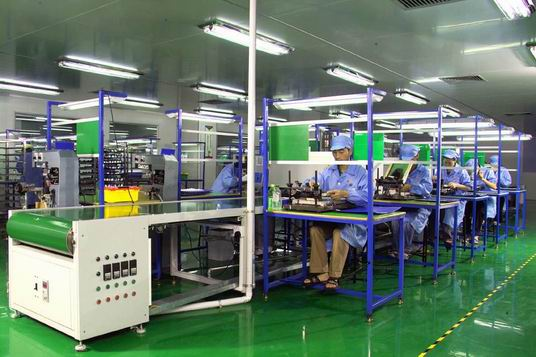

Class 10,000 Clean Room |
|
 |
 |
|

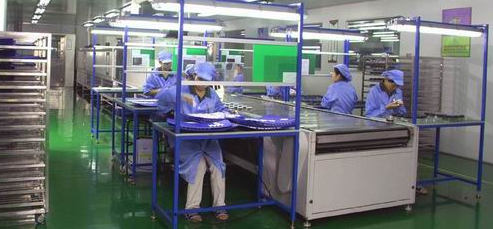

Clean Room |
Clean Room |
|
|
|
|
|
|
Spray Paint Facilities |
|
|
|
|
|
Equipment
|
Qty.
|
|
MOTOMAN Robotic Arm
|
2
|
|
85M Automatic Spraying Line
|
2
|
|
Manual spray station
|
16
|
|

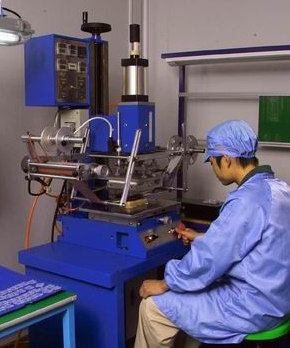

Hot Stamping Machine
|
1
|
|
Pad Printing Machine
|
25
|
|
Silkscreen Station
|
30
|
|
Oven Chamber
|
5
|
|
|
|
|
|
|
Full Loyal Equipment List |
|
|
|
Plastic Injection, Tooling and Secondary Processes |
|
CNC
|
Qty
|
|
1
|
Makino S33 (High Speed)
|
1
|
|
2
|
Arcade AR 3124 (High Speed)
|
1
|
|
3
|
Arcade AR 2117 (High Speed)
|
1
|
|
4
|
Arcade AR 3924
|
1
|
|
5
|
Supermax YCM-VNC-60
|
1
|
|
6
|
Makino RMC 55
|
1
|
|
|
|
|
EDM
|
Qty
|
|
1
|
Mitsubishi EA12DM
|
2
|
|
2
|
Mitsubishi EA8M
|
2
|
|
3
|
Joemars JM430+AZ50
|
1
|
|
4
|
Joemars JM430+AZ50R
|
1
|
|
5
|
Joemars JM322+AZ50
|
1
|
|
6
|
Dophen ZNC36+E50A
|
1
|
|
7
|
ASIA ZNC-500
|
1
|
|
8
|
Tian Chuan TA-400
|
3
|
|
9
|
Susanguang Sadiker DS703C
|
1
|
|
|
|
|
|
|
Wire Cut
|
Qty
|
|
1
|
SODICK QA360L
|
3
|
|
2
|
Xuejia Fu Mu DK7735
|
1
|
|
3
|
Junangnan Saite DK77
|
1
|
|
|
|
|
Milling Machine
|
Qty
|
|
1
|
GM-3
|
1
|
|
2
|
Dick 2K
|
1
|
|
3
|
ManfordMF-450 TM
|
4
|
|
4
|
ManfordMF-4509-N
|
1
|
|
5
|
RM-4S
|
10
|
|
|
|
|
Surface Grinder
|
Qty
|
|
1
|
Chevalier 618
|
1
|
|
2
|
Chevalier FM-618
|
1
|
|
3
|
Chevalier FSG-618MB
|
1
|
|
4
|
Chevalier KGS-618
|
1
|
|
5
|
Arcade Machine Flat KGS-1020Ar1
|
1
|
|
|
|
|
Others
|
Qty
|
|
1
|
Surface Grinding Machine
|
3
|
|
2
|
Lathe Machine
|
1
|
|
3
|
Radial Arm Drilling Machine
|
1
|
|
4
|
Bench Drilling Machine
|
2
|
|
5
|
Hydraulic Sewing Machine
|
1
|
|
6
|
Tool Bit Grinder
|
2
|
|
7
|
Heat Treatment Oven
|
1
|
|
8
|
Rockwell Hardness Meter
|
1
|
|
|
|
|
Injection Machine
|
Qty
|
|
1
|
Donghua FX100 (100 Tons, 1.7 oz)
|
6
|
|
2
|
Donghua FX100 (100 Tons, 3.6 oz)
|
2
|
|
3
|
Donghua FX140 (140 Tons, 3.6 oz)
|
9
|
|
4
|
Donghua FX140 (140 Tons, 5.6 oz)
|
5
|
|
5
|
Donghua FX180 (180 Tons, 8.3 oz) with Robotic Arm FQ650WD
|
2
|
|
6
|
Donghua FX180 (180 Tons, 3.6oz+2.5oz) Multi-Material Injection Molding
|
1
|
|
7
|
Chit Shun C258 (258 Tons, 3oz+3oz) Multi-Material Injection Molding
|
1
|
|
8
|
Hone S100HT (100 Tons 4.1 oz)
|
1
|
|
9
|
Hone S130HT (130 Tons 7.6 oz)
|
1
|
|
10
|
Topfine 105TN (105 Tons, 2.7 oz)
|
1
|
|
11
|
Topfine 105TN (105 Tons, 3.6 oz)
|
1
|
|
12
|
Topfine 145TN (145 Tons, 6.0 oz)
|
2
|
|
13
|
Topfine 145TN (145 Tons, 9.4 oz)
|
4
|
|
14
|
Topfine 185TN (185 Tons, 13 oz)
|
6
|
|
15
|
Topfine 255TN (255 Tons, 19 oz)
|
1
|
|
16
|
Topfine 315TN (315 Tons, 29 oz)
|
1
|
|
17
|
Effecta PT200 (200 Tons, 14oz) with Robotic Arm A750WDM
|
2
|
|
18
|
Effecta PT250 (250 Tons, 20oz)
|
2
|
|
19
|
Effecta PT350 (350 Tons, 36oz)
|
1
|
|
20
|
Guan Ming Vertical Injection Machine (80 Tons, 2 oz)
|
2
|
|
|
|
|
Painting Facilities
|
Qty
|
|
1
|
Yashawa Industrail Robot YR-PX2050-A30
|
2
|
|
2
|
Automatic Spraying Line
|
2
|
|
3
|
Water Spraying Booth
|
16
|
|
|
|
|
Silkscreen and Pad Printing Facilities
|
Qty
|
|
1
|
Pad Printing Machine
|
25
|
|
2
|
Silkscreen Station
|
30
|
|
|
|
|
Hot Stamping Machine
|
Qty
|
|
1
|
HTM-200
|
1
|
|
|
|
|
Testing Equipment and Facilities
|
Qty
|
|
1
|
CMM
|
1
|
|
2
|
Chromatic Aberration Meter
|
1
|
|
3
|
RCA Paper Rubbing Tester
|
1
|
|
4
|
Alcohol Rubbing Tester
|
1
|
|
5
|
Pencil Hardness Tester
|
1
|
|
6
|
Paint Thickness Tester
|
1
|
|
7
|
Cross Cut Tool
|
1
|
|
8
|
Color Assessment Cablinet
|
1
|
|
|
|
|
|
|

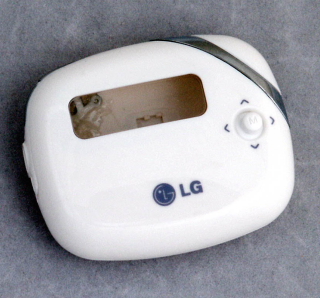

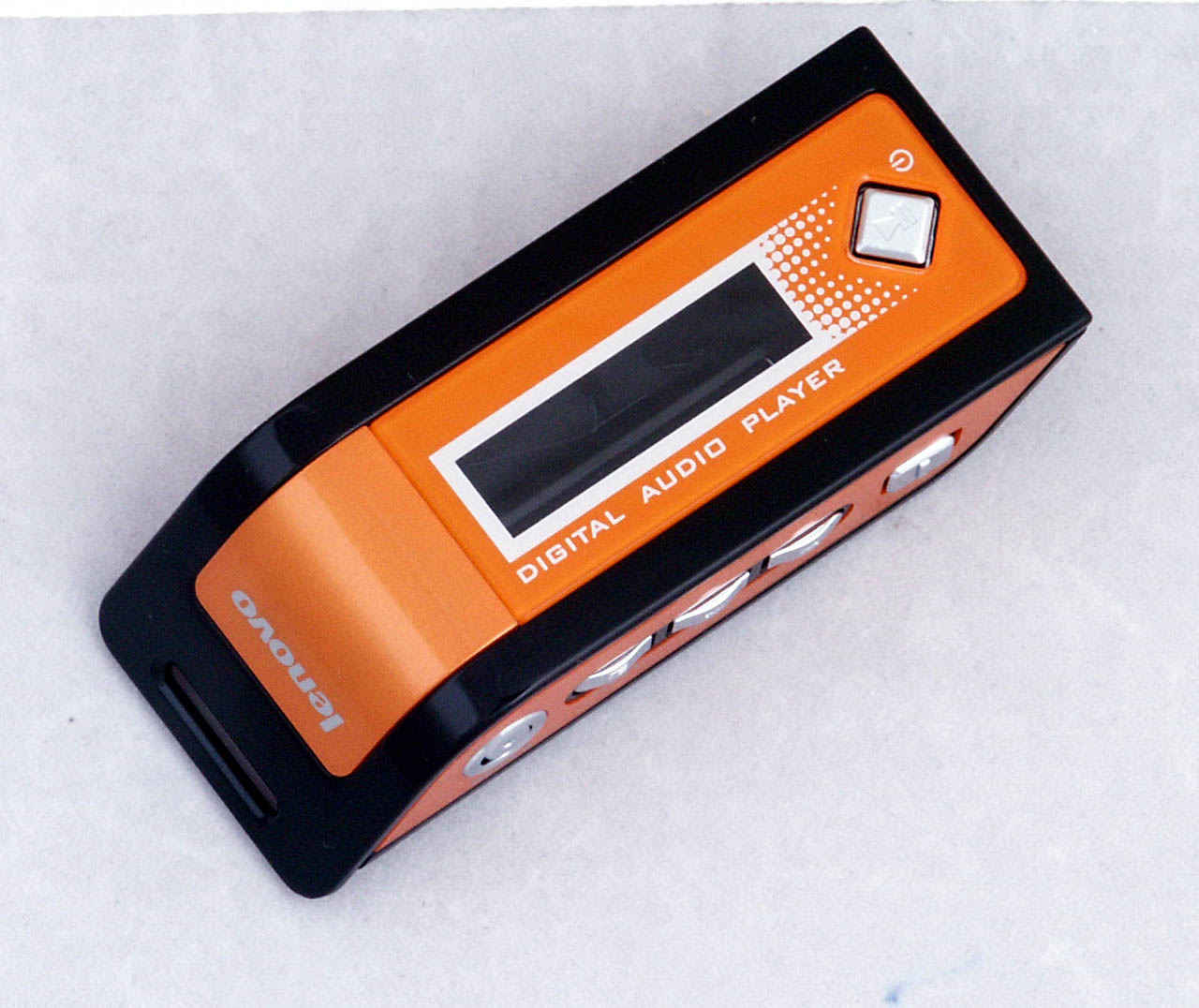

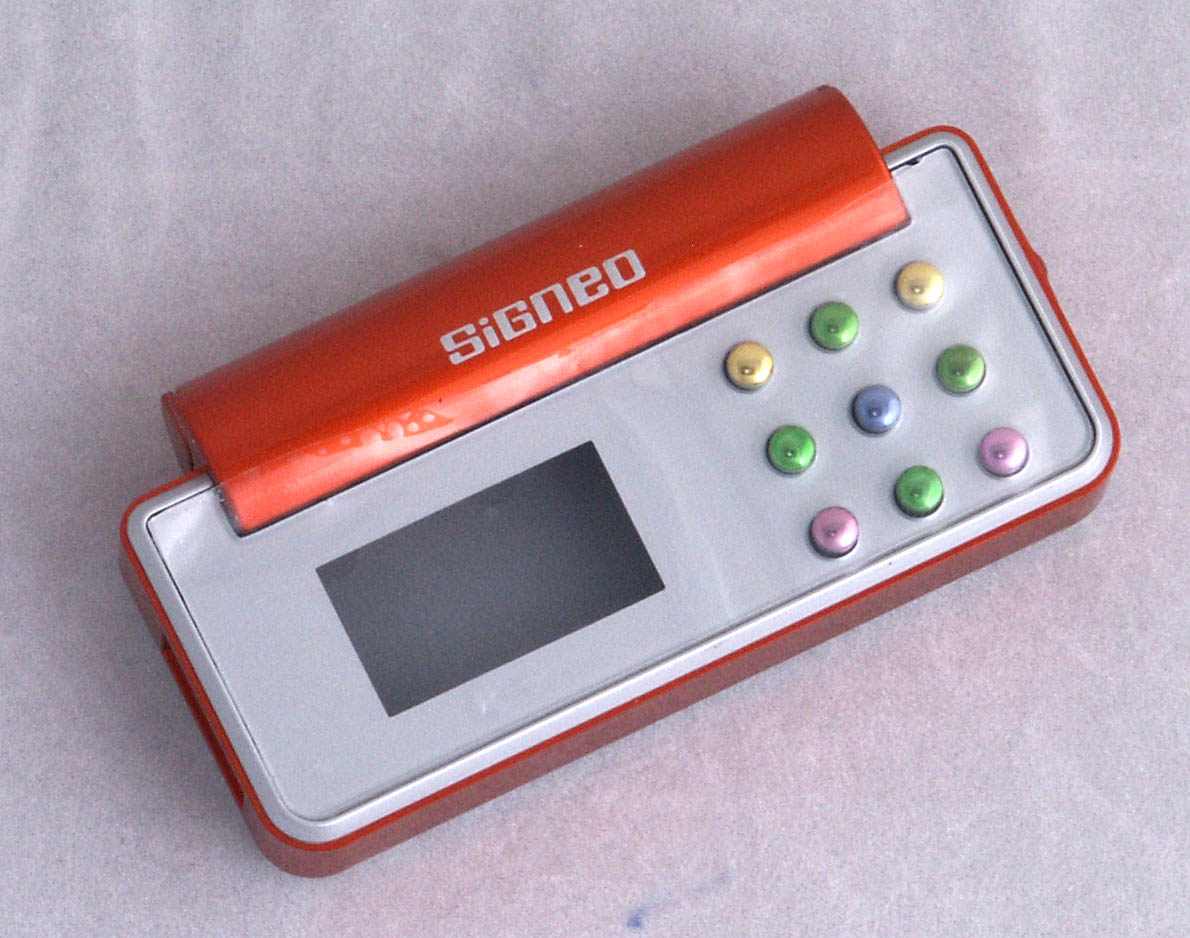

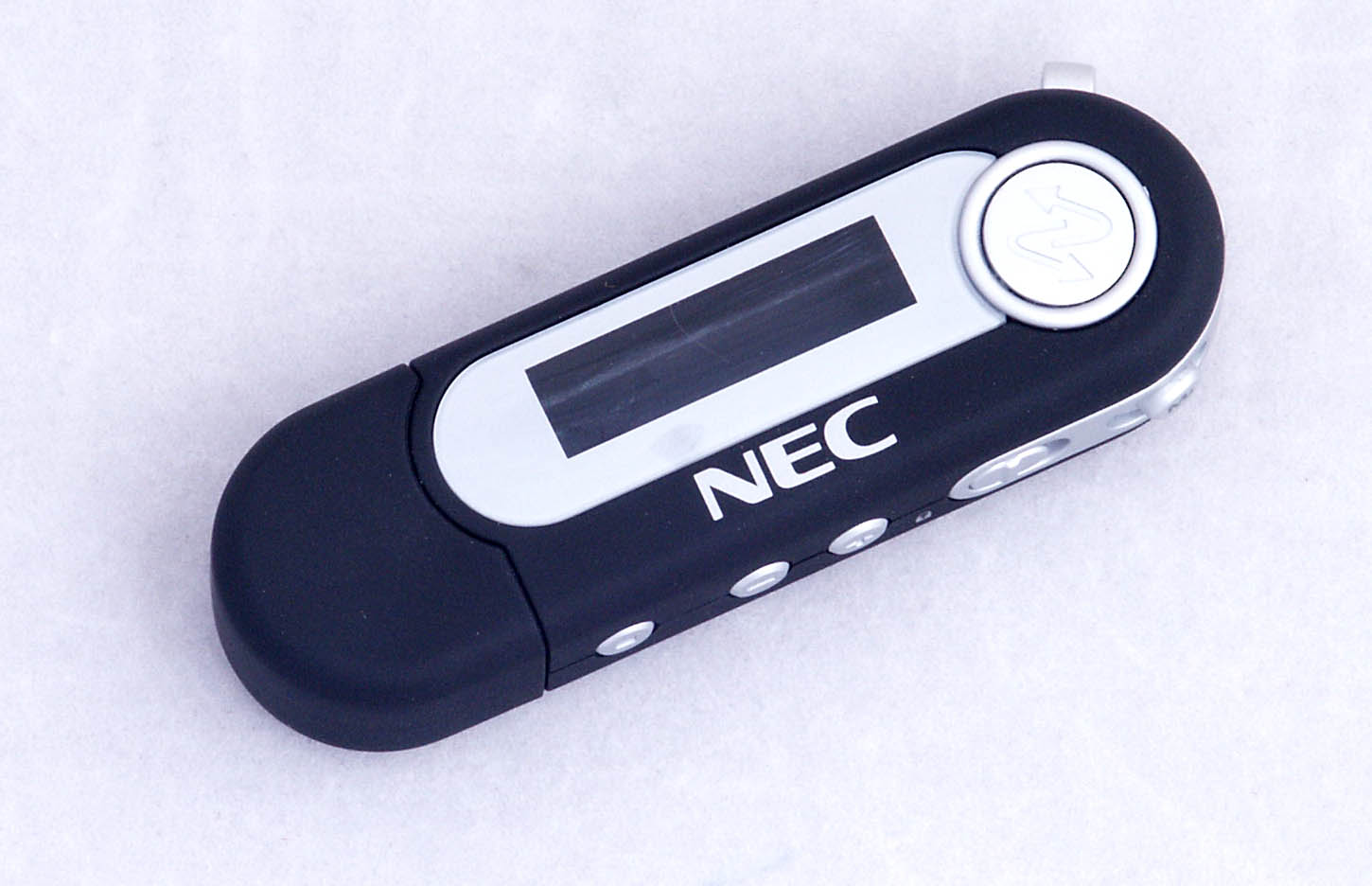

Product Reference Show Case 1 |
|
|
|
|
|
Manufacturing Capacity |
|
Manufacturing Area : 7500 sq. meter |
|
1 production floor for tooling. |
|
1 production floor for plastic injection |
|
1 production floor for plastic painting |
|
|
|
Advanced machinery in tooling shop : 30 sets of tooling per month. |
|
|
|
58 units of plastic injection machine : 100K shot per day. |
|
|
|
2 sets of robotic arm, 2 automatic spraying line and 22 stations of manual spray : 100K pieces plastic case |
|
(size : 60mm x 40mm x 20mm) |
|
|
|
