Electronics Manufacturing Services (EMS) |
|
|
|
Value-added services include production of: |
|

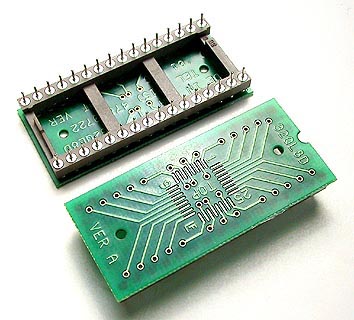

- Complex PCB assemblies (PCBA) |
 |
|
- Chip on board (COB) – Bonding |
|
- Surface Mount Technology (SMT) |
|
- Ball Grid Array (BGA) SMT |
|
- for Flexible Printed Circuit (FPC) |
|
- Through Hole Insertion |
|
- SMT + DIP + Testing + Assembly + Packing |
|
|
|
|
New Segments : Tools, Home Appliances |
 |
|
|
|
Value-added services included: |
|
- Complex PCB assemblies |
|
- Chip on Board(COB)-- Bonding |
|
- Surface Mount Technology(SMT) |
|
- Ball Grid Array(BGA) |
|
- SMT for Flexible Printed Circuit(FPC) |
|
- Through Hole Insertion |
|
|
|
SMT + DIP + Testing + Assembly + Packing = One Stop Shop |
|
|
|
Manufacturing Facilities 1 |
|
|
|
High-Speed SMT Machines |
|
7 lines (Up to 5M Chips/Day) – handling up to 0201 components |
 |
|
PCB size : Min 50mm x 50mm to Max 435mm x 360mm |
|
PCB Thickness : 0.4mm to 3mm |
|
BGA , Flip Chip SMD component in dust controlled environment |
|
|
|
|
|
|
Manufacturing Facilities 2 |
|
|
|
Wire-Bonder Machines |
|
6 sets (Up to 700K wires/Day) fine-pitch Chip on Board (COB) |
|
Working Table for PCB size : 66mm X 66mm |
|
Bonding Accuracy : XY Table with 5μm θ: 0.225º |
|
|
|
Through Hole Insertion |
|
With all kind of pre-form & pre-cut machine. |
|
Wave Soldering (Lead-free) is ready with 400kg solder bath. |
|
Automatic Manual insertion line. |
|
|
|
|
|
|
|
|
|

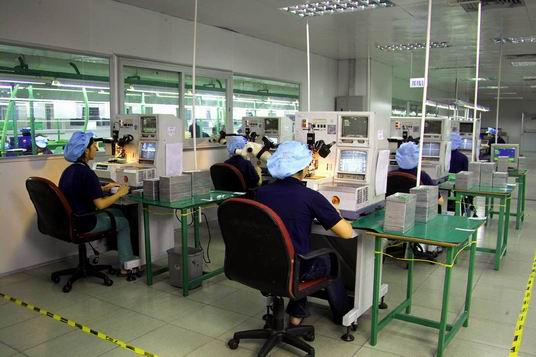

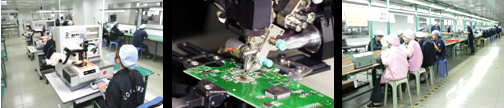

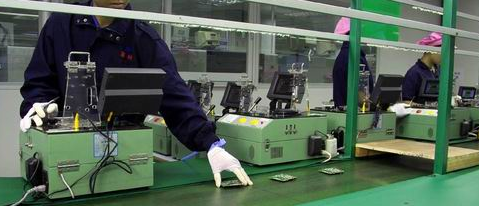

EMS Facilities - Bonding |
|
|
 |
 |
 |
|

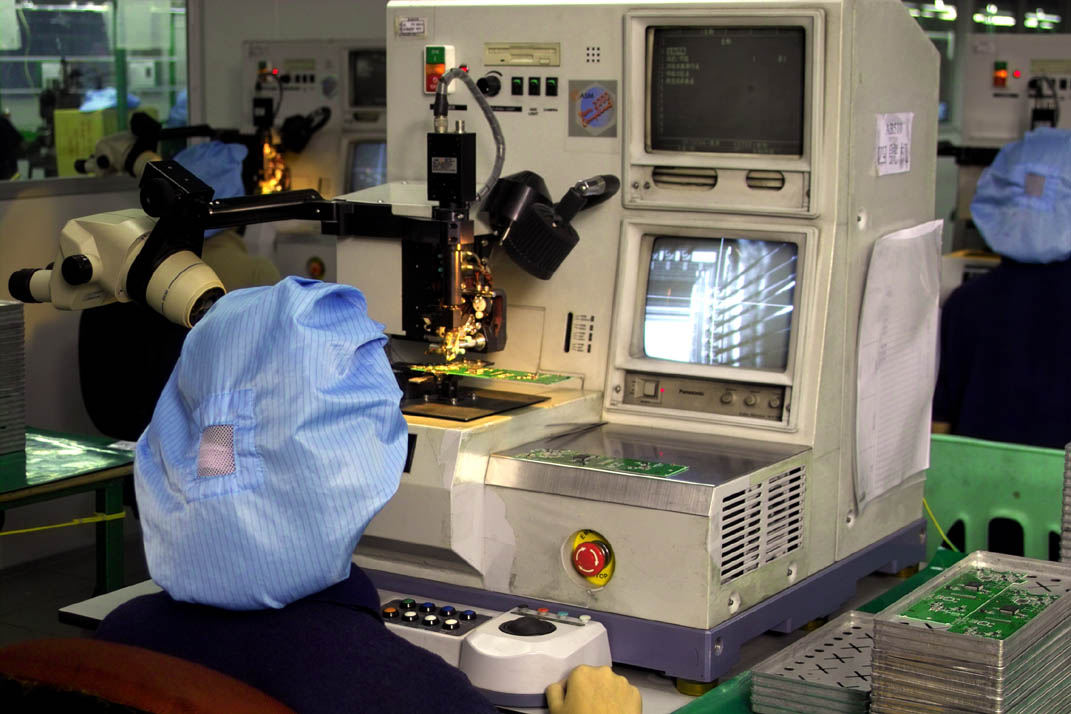

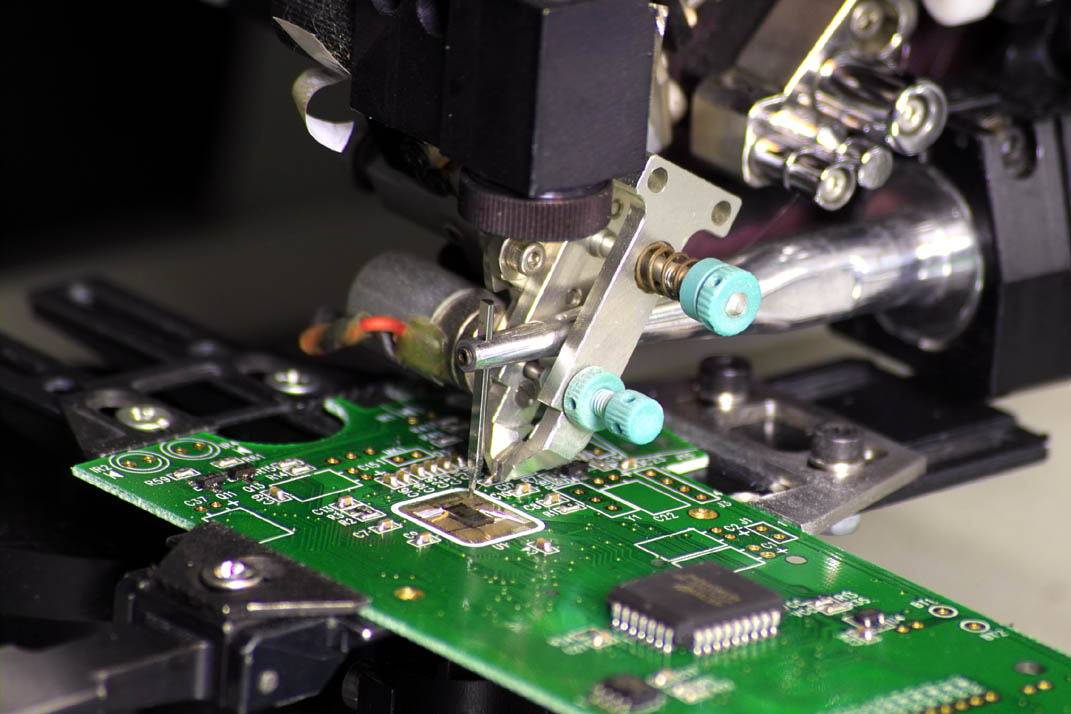

Integrated Circuits Bonding |
|
Precise Control |
|
|
|
|
|
|
EMS Facilities – SMT Process |
|
|
 |
.png) |
|
Wave Soldering |

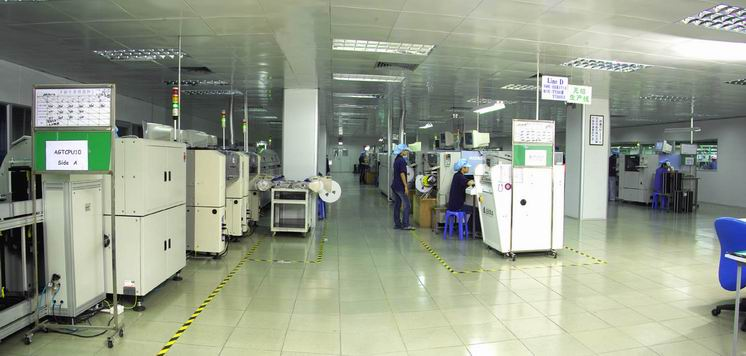

SMT Floor |
|
|
|
|
|
|
EMS Facilities – Quality Control |
|
|
 |
 |
|

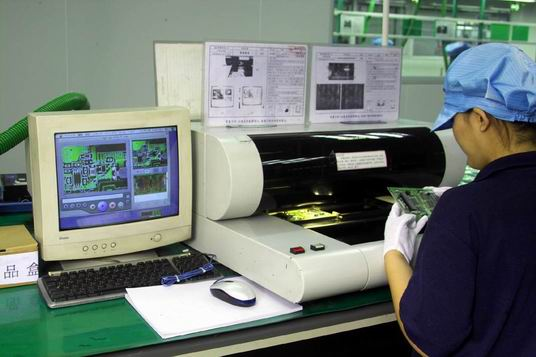

Automatic Optical Inspection |

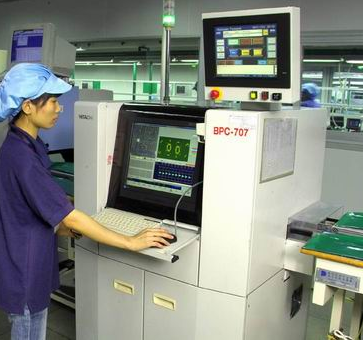

Solder Paste Inspection Machine |
|
|
|
|
|
|
EMS Facilities – Assembly Line |
|
|
 |
|

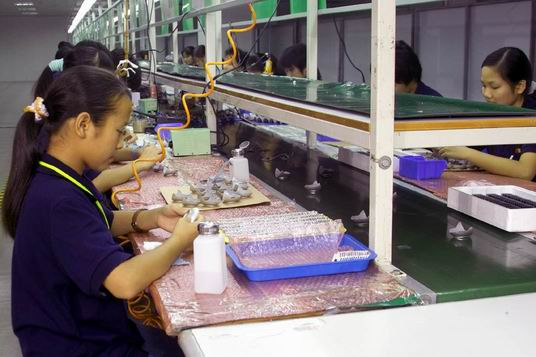

Casing Assembly with Testing |
|
|
 |
 |
|
|
Test Jigs Testing |
|
|
|
|
|
|
EMS Facility List |
|
|
|
Equipment
|
Brand
|
Model
|
Qty
|
|
Automatic Screen Printing Machine
|
Yamaha
|
YVP-Xg
|
1
|
|
Automatic Screen Printing Machine
|
Sun East
|
SEM-668
|
1
|
|
Automatic Screen Printing Machine
|
Sun East
|
SEM-668 G2
|
1
|
|
Automatic Screen Printing Machine
|
Sun East
|
SEM-668 G2
|
2
|
|
Automatic Screen Printing Machine
|
Folungwin
|
Win_5
|
2
|
|
Solder Paste Inspection Machine (In-Line)
|
Hitachi
|
BPC-707
|
1
|
|
Solder Paste Inspection Machine (In-Line)
|
Hitachi
|
BPC-707KD+
|
1
|
|
SMT Mounting Machine
|
Yamaha
|
YV100II
|
1
|
|
SMT Mounting Machine
|
Yamaha
|
YV100Xe
|
2
|
|
SMT Mounting Machine
|
Yamaha
|
YV100X
|
3
|
|
SMT Mounting Machine
|
Yamaha
|
YV100Xg
|
1
|
|
SMT Mounting Machine
|
Yamaha
|
YV100Xgp
|
1
|
|
SMT Mounting Machine
|
Yamaha
|
YV100Xgp
|
1
|
|
SMT Mounting Machine
|
Yamaha
|
YV88Xg
|
2
|
|
SMT Mounting Machine
|
Yamaha
|
YG200
|
2
|
|
SMT Mounting Machine
|
Samsung
|
CP45F
|
1
|
|
SMT Mounting Machine
|
Samsung
|
CP45FV
|
1
|
|
SMT Mounting Machine
|
Yamaha
|
YG200
|
2
|
|
SMT Mounting Machine
|
Yamaha
|
YV100Xg
|
1
|
|
SMT Mounting Machine
|
Yamaha
|
YV100Xgp
|
1
|
|
SMT Mounting Machine
|
Yamaha
|
YV88Xg
|
2
|
|
Re-Flow Oven
|
Sun East
|
HA-5CR
|
1
|
|
Lead-Free Re-Flow Oven
|
Sun East
|
NT-8A-V2
|
1
|
|
Lead-Free Re-Flow Oven
|
Sun East
|
NT-8A-V2
|
1
|
|
Lead-Free Re-Flow Oven
|
Sun East
|
NT-8A-V2
|
2
|
|
Lead-Free Re-Flow Oven
|
Chang Rong
|
CR-8000NP
|
1
|
|
Lead-Free Re-Flow Oven
|
Folungwin
|
FL-VP1060
|
1
|
|
Lead-Free Re-Flow Oven (With N2 )
|
Folungwin
|
FL-VP1060N
|
1
|
|
Solder Paste Inspection Machine (In-Line)
|
Hitachi
|
BPC-707KD+
|
2
|
|
Automatic Optical Inspection (AOI)
|
Marantz
|
22X
|
1
|
|
Automatic Optical Inspection (AOI)
|
Marantz
|
M22X DL-350
|
1
|
|
In-Circuit Tester (ICT)
|
Hioki
|
1105
|
1
|
|
